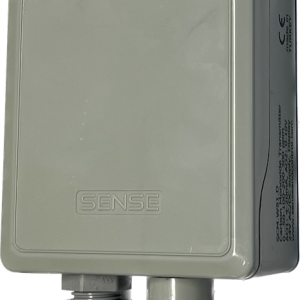

SCM.W Carbon Monoxide Transmitter
€ 79,94 – € 101,94
20mm round type replaceable electrochemical cell, from 50ppm to 1.000ppm
wall type, 2 analog outputs, modbus/rs485, display, 2x relays, buzzer
Features
• Replaceable 20mm Round Type Electrochemical Cell
• Estimated operating life 6 years, long term output drift <5% each year
• Zero-Span Calibration & Lineer output
• CO ranges, standard: 50ppm, 100ppm, 200ppm and 300ppm
• CO ranges, extended: 100ppm, 300ppm, 500ppm and 1.000ppm
• CO output signal 4-20 mA and 0…10 Vdc
• Operating voltage 24V AC/DC
Applications
• Vehicle exhaust measuring at garages, auto parks
• Early fire detection
• Air quality applications: measuring CO concentrations as of odors; tobacco smoke, body odor, or material fumes in cinema/theatre halls, exhibition halls, restaurants, canteens, shopping malls and conference rooms etc
| Parameter | Carbon Monoxide, CO |
|---|---|
| Sensor | 20mm Electro-Chemical |
| Mounting Type | Wall |
| Analog Output 1 | 0-10V, 4-20mA, 0-5V, 2-10V, 1-5V |
| Analog Output 2 | 0-10V, 4-20mA, 0-5V, 2-10V, 1-5V |
| Optional Features | Modbus/RS485, Display, Relay x1, Relay x2, Buzzer |
| Supply Voltage | 24V AC/DC |
