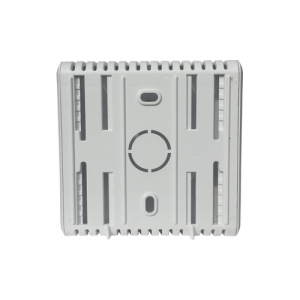

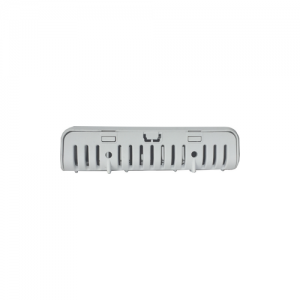

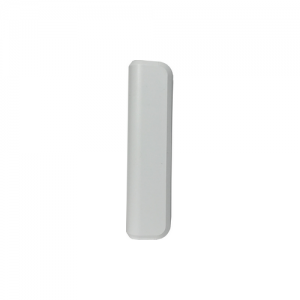

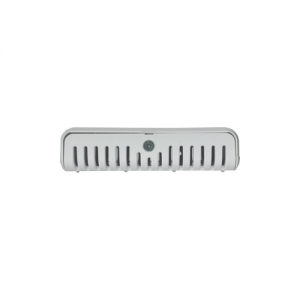

SHR Humidity & Temperature Transmitter
€ 59,92 – € 81,92
humidity & temperature transmitter, 0…100%rH, temp. ranges: 0…50C, -30…+70C,
room type, 2 analog outputs, modbus/rs485, display, 2x relays, buzzer
Features
• Maintenance free mems type sensing element
• rH accuracy 3%rH standard, optional 2%rH
• Estimated operating life min. 10 years
• Hum. range: 0…100 %rH
• Operating voltage 24V AC/DC
Applications
• HVAC supply or extract air measuring
• Humidifiers or dehumidifiers controls
• Dew point measuring
• Pool, greenhouse or hencoop applications
• Air quality applications: measuring and controlling humidity ratio of clean rooms
| Parameter | Temperature, Humidity |
|---|---|
| Sensor | MEMS |
| Mounting Type | Room |
| Analog Output 1 | 0-10V, 4-20mA, 0-5V, 2-10V, 1-5V |
| Analog Output 2 | 0-10V, 4-20mA, 0-5V, 2-10V, 1-5V |
| Optional Features | Modbus/RS485, Display, Relay x1, Relay x2, Buzzer |
| Supply Voltage | 24V AC/DC |
